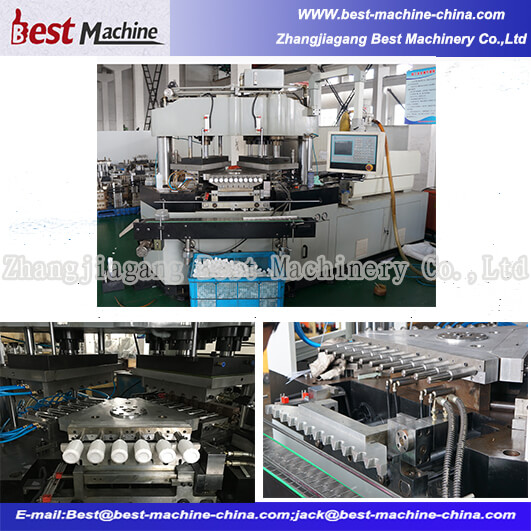

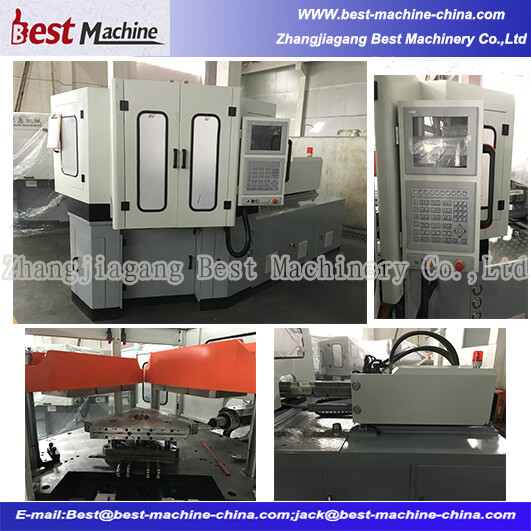

BSD-30F Injection Blow Molding Machine For Making Plastic Bottle

BSD-30F Injection Blow Molding Machine For Making Plastic Bottle

规格:	8ML(9 Cavities)

Quantity:

Inquire Add To Basket

Share this:

Model： BSD-30F
Brand： Best Machinery
Dia.of screw：40mm
Screw L/D：24
Shot volume：200cm³
Injection weight：163g
clamping force of injection：300KN
clamping force of blowing：80KN
max.platen size(L*W)：420*300mm
motor power：11.4kw
dimension(L*W*H)：3050*1300*2150
NET WEIGHT：3.6t

Features
Technical parameters
Our service

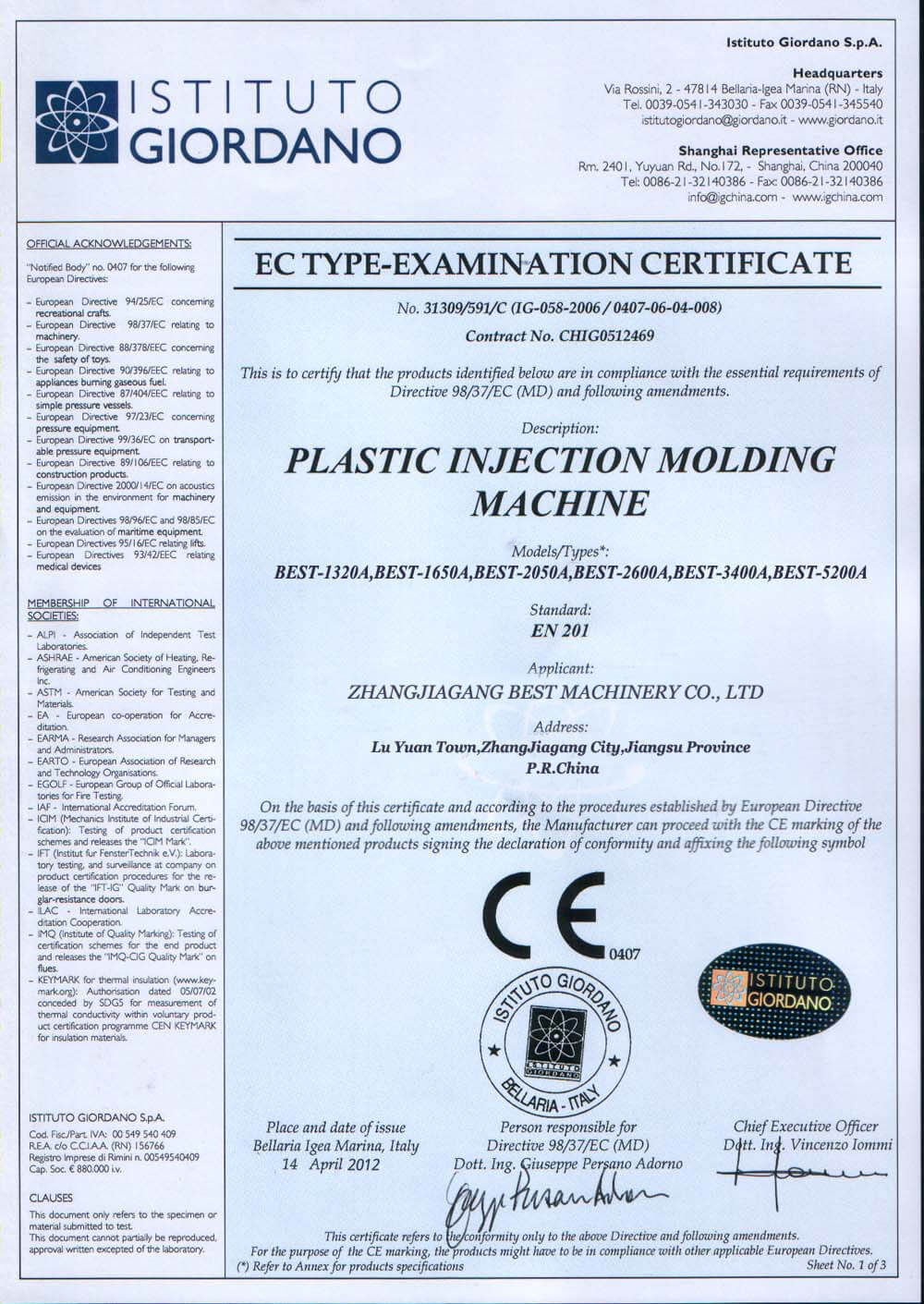

Certification

Features
1)Adopt Electro-Hydraulic Hybrid Servo System Can save 40% power than usual.

2)Adopt three-cylinder to lock the mold with the replenishing valve,can make the high and short cycle products.

3)Apply the double verticalpole and single horizontal beam to make enough rotation space,longer bottles,make the mold installation easy and simple.

No.	item	Unit	Data
1	Dia.of screw	mm	40
2	Screw L/D		24
3	Shot volume	cm³	200
4	Injection Weight	g	163
5	Injection Pressure	Mpa	175
6	Max.screw stroke	mm	165
7	Max.screw speed	rpm	10-225
8	Heating capacity	kw	6
9	No.of heating zone	Qty	3
10	clamping&blowing system
11	clamping force of injection	KN	300
12	clamping force of blowing	KN	80
13	opening stroke of mold plant	mm	120
14	lifign height of rotary table	mm	60
15	max.platen size	mm	420*300
16	min.mold thickness	mm	180
17	heating capacity of mould	Kw	1.2-2.5
18	stripping system
19	stripping troke	mm	180
20	driving system
21	motor power	kw	11.4
22	hydraulic pressure	Mpa	14
23	product range
24	suitable bottle range	L	0.005-0.8
25	max.bottle height	mm	≤180
26	max.dia.of bottle	mm	≤100
27	other
28	dry cycle	s	3
29	min.Air pressure	Mpa	1.2
30	discharge rate of compressed air	m³/min	＞0.8
31	water flowage	m³/h	3
32	total rated power with mold heating	Kw	18.5
33	Dimension(LWH)	mm	305013002150
34	net weight	T	3.6

What service Best Machinery Co.,Ltd can offer you ?
• Your inquiry related to our product & price will be replied within 24hours
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• OEM & ODM projects are both available
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.

Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 3,000 million fixed assets...
