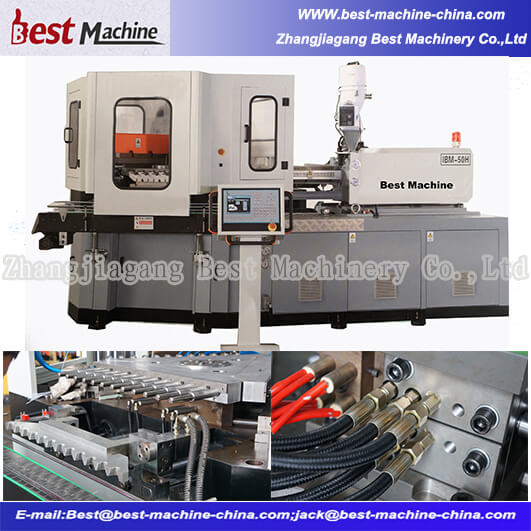

BSD-50H Injection Blow Molding Machine For Making Plastic Bottle

BSD-50H Injection Blow Molding Machine For Making Plastic Bottle

Quantity:

Inquire Add To Basket

Share this:

Model： BSD-50H
Brand： Best Machinery
Dia.of screw：50mm
Screw L/D：21
Shot volume：325 cm³
Injection weight：300g
clamping force of injection：500kn
clamping force of blowing：150kn
motor power：22kw
NET WEIGHT：7.5t
dimension：3800*1600*2230
dry cycle：3.2s

Features
Technical Parameters
Our service
Certification

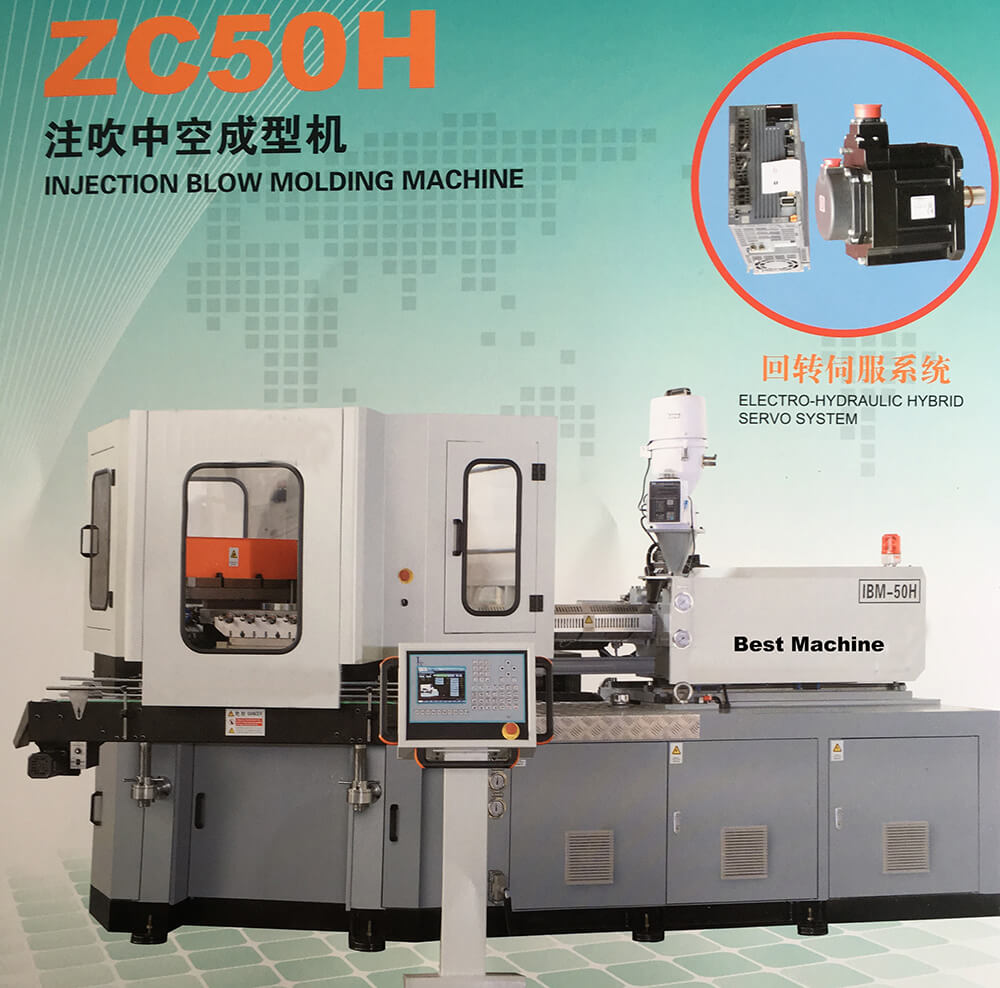

1.Hydraulic system adopt electri-hydraulic hybrid servo system,can save 40% power than usual.
2.Rotation device,ejection device and flipping device adopt lasted servo motor,it can improve the performance stable,solve the problem of oil leak which is caused by the seal aging deterioration.
3.IBM50H clamping cylinder is under rotation table,which advance for mould change&product clean,Open-close mold adopt double horizontal beam and four vertical pull rod
4.Open-close mold adopt assisstant cylinder do the actions,main cylinder purge and lock mould.it can do the action in high stability and speed.Cylinder clamping force ben more balance to improve machine better inflexibility.
5.Melt back pressure is controlled by cnc,can work more covenient and reliable.

No.	item	Unit	Data
1	Dia.of screw	mm	50
2	Screw L/D		21
3	Shot volume	cm³	325
4	Injection Weight	g	300
5	Injection Pressure	Mpa	167
6	Max.screw stroke	mm	210
7	Max.screw speed	rpm	10-235
8	Heating capacity	kw	8.5
9	No.of heating zone	Qty	4
10	clamping&blowing system
11	clamping force of injection	KN	500
12	clamping force of blowing	KN	150
13	opening stroke of mold plant	mm	120
14	lifign height of rotary table	mm	60
15	max.platen size	mm	580*390
16	min.mold thickness	mm	240
17	heating capacity of mould	Kw	2.5
18	stripping system
19	stripping troke	mm	210
20	driving system
21	motor power	kw	22
22	hydraulic pressure	Mpa	14
23	product range
24	suitable bottle range	L	0.015-0.8
25	max.bottle height	mm	≤200
26	max.dia.of bottle	mm	≤100
27	other
28	dry cycle	s	3.2
29	min.Air pressure	Mpa	1.2
30	discharge rate of compressed air	m³/min	＞0.8
31	water flowage	m³/h	3.5
32	total rated power with mold heating	Kw	30
33	Dimension(LWH)	mm	380016002230
34	net weight	T	7.5

What service can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 1 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
