BST-11000A plastic injection molding machine

BST-11000A plastic injection molding machine

BST-11000A INJECTION MOLDING MACHINE Shot weight :6000-6480g，MAX Clamping Force:1100MM，Space Between Tie Bars:1230X1105MM，we have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

machine size(LxWxH):

14x2.9x4.1m

Quantity:

Inquire Add To Basket

Share this:

Model：BST-11000A
origin：Zhang Jia Gang city
packaging：the tray

Product Description
Product Description1
Product Description2

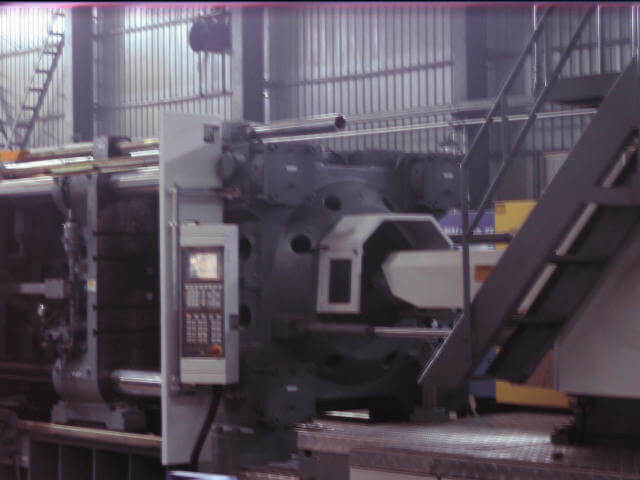

BST-11000A injection molding machine
The computer is imported from Industry family,The LCD displaying screen with high clarity has Chinese and English language to display
CLAMPING UNIT;

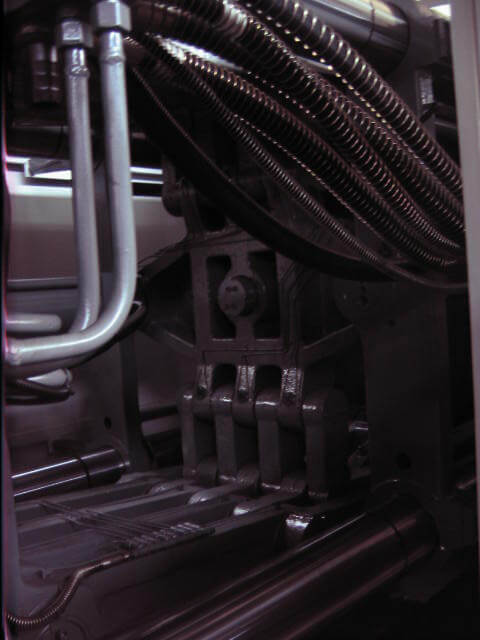

New type 5-point toggle device with the advantage of stable movement curve and gentle shock
Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
Transducer control clamping stroke
INJECTION UNIT
Nitrided screw and barrel with long service life
Smelted screw with big L/D ratio to the result of high quality plasticizing and color-fixing
Transducer control injection stroke
The machines have compact structure, reasonable design, high configuration, energy saving, suitable for producing different big weight, big size and hig precision products.

MODEL	BST-11000A
INJECTION UNIT		A	B
Screw diameter	mm	120	125
Shot size(theoretical)	Cm³	6670	7200
Shot weight	g	6000	6480
Injection pressure	Mpa	159	146.5
Injection rate	g/s	900	976
Screw L/D ratio	L/D	20.8	20
Screw speed	r.p.m	0-100
Nozzle Diameter	Srmm	25
CLAMPING
Clamp tonnage	KN	11000
Toggle stroke	mm	1100
Mould Thickness	mm	500-1150
Space between tie-bars	mm	1230X1105
Ejector stroke	mm	300
Ejector tonnage	KN	210
Ejector number	Piece	21
Hole Diameter	mm	250
OTHERS
Heat power	KW	63
Max. pump pressure	MPa	16
Pump motor power	KW	128
Valve Size	mm	cartridge valve
Machine dimension	m	14X2.9X4.1
Machine weight	t	63
Oil tank capacity	L	1800

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:80-90days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better

Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 3,000 million fixed assets...
