BST-5200A plastic injection molding machine

BST-5200A plastic injection molding machine

BST-5200A SHOT WEIGHT :2200-2130G，MAX OPENING STROKE:730MM，SPACE BETWEEN TIE BARS:770X740MM
we have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

machine size(LxWxH):

8.6x2.2x2.25m

Quantity:

Inquire Add To Basket

Share this:

Model：BST-5200A
origin：Zhang Jia Gang city
packaging：the tray

Product Description
Product Description1
Product Description2

BST-5200A injection molding machine
The computer is imported from Industry family,The LCD displaying screen with high clarity has Chinese and English language to display
CLAMPING UNIT;
New type 5-point toggle device with the advantage of stable movement curve and gentle shock
Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
Transducer control clamping stroke

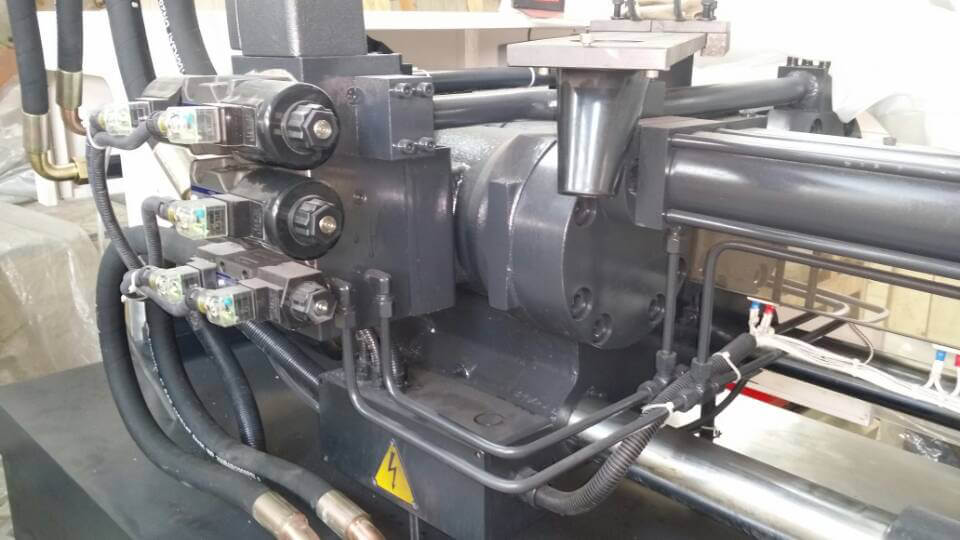

INJECTION UNIT
Nitrided screw and barrel with long service life
Smelted screw with big L/D ratio to the result of high quality plasticizing and color-fixing
Transducer control injection stroke

MODEL	BST-5200A
INJECTION UNIT		A	B
Screw diameter	mm	82	85
Shot size(theoretical)	Cm³	2200	2360
Shot weight	g	1980	2130
Injection pressure	Mpa	160	149
Injection rate	g/s	465	500
Screw L/D ratio	L/D	20.5	19.8
Screw speed	r.p.m	0-150
Nozzle Diameter	Srmm	20
CLAMPING
Clamp tonnage	KN	5200
Toggle stroke	mm	730
Mould Thickness	mm	290-780
Space between tie-bars	mm	770X740
Ejector stroke	mm	200
Ejector tonnage	KN	125
Ejector number	Piece	13
Hole Diameter	mm	200
OTHERS
Heat power	KW	28.1
Max. pump pressure	MPa	16
Pump motor power	KW	18.5+25
Valve Size	mm	Cartridge Valve
Machine dimension	m	8.6X2.2X2.25
Machine weight	t	20
Oil tank capacity	L	750

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:50-60days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better
