BST-5500A injection molding machine for plastic basin
Shot weight is 2200-2466 g
Max opening stroke : 820 mm
Space between tie-bars : 810 X 810 mm

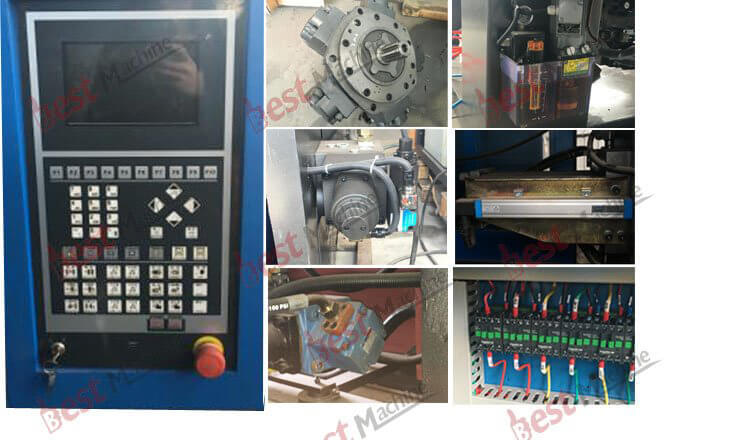

We have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.

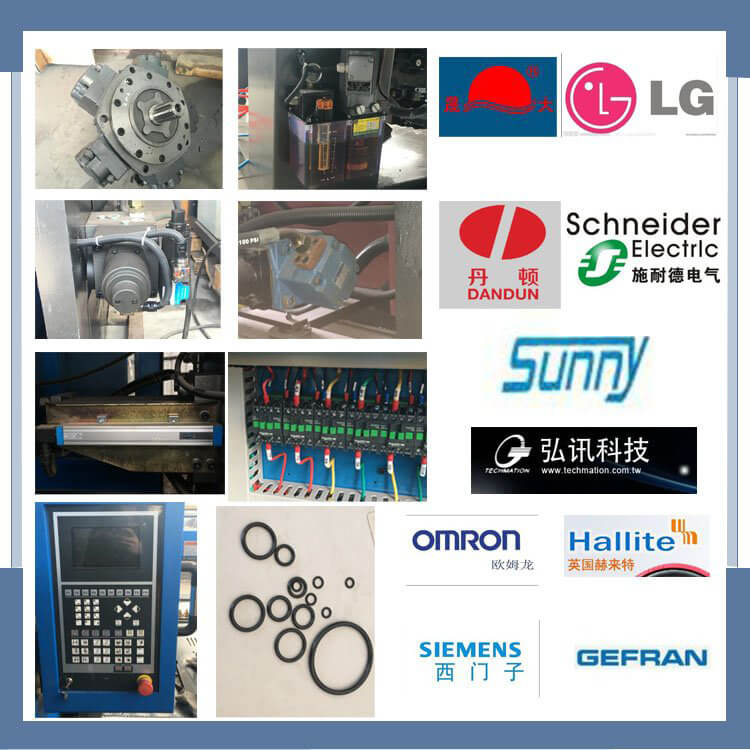

Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
Suitable for producing differernt types of precision pet preform ,cap ,PVC,PPR Pipe Joint Electric parts
|
Style:
|
|
|
Condition:
|
|
|
Automatic:
|
|
|
Payments:
|
|
|
Quantity:
|
|
Strong Technical design ability, Stable quality, and large production capability, Famous brand.

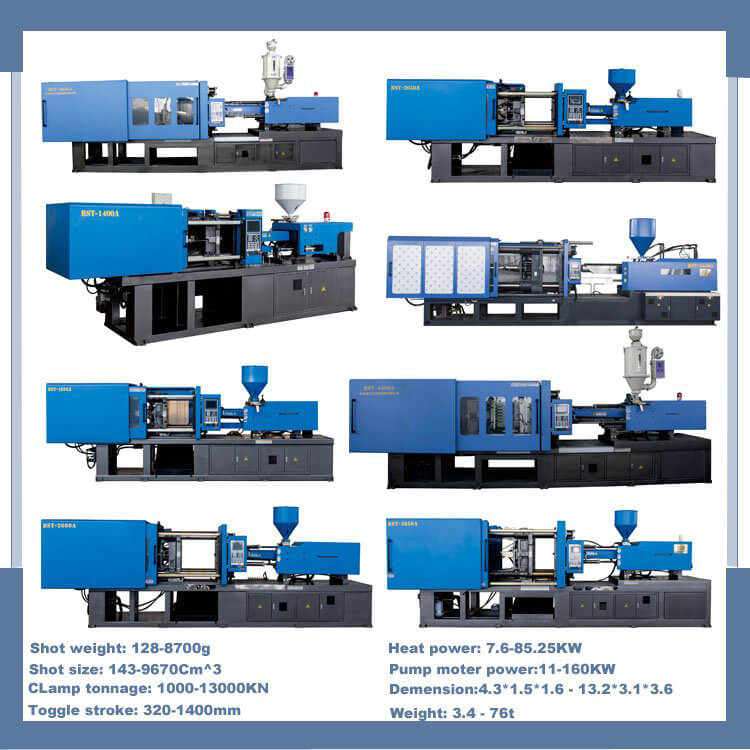

| Model | Clamp tonnage (KN) | Ejector tonnage (KN) | Heat power(KN) | Max.Pump pressure (MPA) | Pump motor power(kw) | Machine dinension(m) | Machine weight(t) | Oil tank capacity(L) |
| BST-1000A | 1000 | 50 | 7.6 | 16 | 11 | 4.3*1.5*1.6 | 3.4 | 180 |
| BST-1320A | 1320 | 50 | 8.2 | 16 | 13 | 4.5*1.6*1.7 | 3.9 | 200 |
| BST-1400A | 1400 | 50 | 8.2 | 16 | 13 | 4.8*1.6*1.7 | 4.2 | 220 |
| BST-1650A | 1650 | 70 | 8.2 | 16 | 15 | 5.0*1.6*1.7 | 5 | 250 |
| BST-1800A | 1800 | 70 | 11 | 16 | 15 | 5.3*1.6*1.75 | 5.5 | 250 |
| BST-2050A | 2050 | 70 | 11.6 | 16 | 17 | 5.4*1.6*1.75 | 6 | 270 |
| BST-2300A | 2300 | 70 | 11.6 | 16 | 18.5 | 5.7*1.8*2.0 | 6.5 | 300 |
| BST-2600A | 2600 | 70 | 15.5 | 16 | 25 | 6.1*1.7*1.8 | 8 | 350 |
| BST-3000A | 3000 | 80 | 15.5 | 16 | 25 | 6.5*1.8*1.8 | 9 | 370 |
| BST-3400A | 3400 | 80 | 17.5 | 16 | 30 | 6.7*2.0*1.9 | 10.8 | 400 |
| BST-3850A | 3850 | 80 | 17.5 | 16 | 30 | 7.0*2.2*2.0 | 11.5 | 400 |
| BST-4500A | 4500 | 85 | 20.5 | 16 | 37 | 7.3*2.3*2.4 | 13.8 | 450 |
| BST-4800A | 4800 | 125 | 23.4 | 16 | 40 | 8.3*2.2*2.2 | 16.2 | 600 |
| BST-5200A | 5200 | 125 | 28.1 | 16 | 43.5 | 8.6*2.2*2.25 | 20 | 750 |
| BST-5800A | 5800 | 125 | 28.1 | 16 | 48.5 | 8.75*2.2*2.3 | 21.8 | 850 |
| BST-6500A | 6500 | 160 | 37.1 | 16 | 55 | 9.2*2.2*2.4 | 26 | 1000 |
| BST-7500A | 7500 | 180 | 40.9 | 16 | 67 | 10.7*2.3*2.7 | 38 | 1200 |
| BST-8500A | 8500 | 186 | 42.5 | 16 | 74 | 11*2.4*2.75 | 45 | 1300 |
| BST-11000A | 11000 | 210 | 63 | 16 | 128 | 14*2.9*4.1 | 63 | 1800 |
| BST-13000A | 13000 | 280 | 85.25 | 16 | 160 | 13.2*3.1*3.6 | 76 | 2400 |

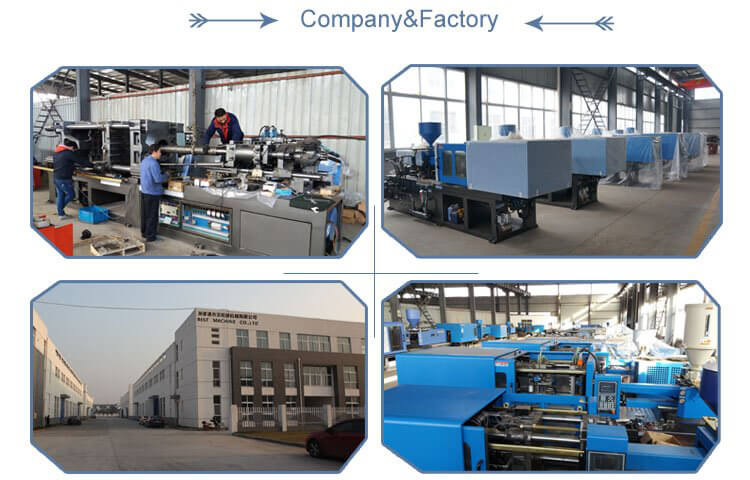

ZhangJiaGang City BEST Machinery Co., LTD is located in a bueatiful development zone in Tangqiao, Zhangjiagang City, Jiangsu Province, China.
Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 3,000 million fixed assets, during the past 19 years, we always force our energy into new areas of plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machcines from our company carry good quality and effective after-sales service, upon the domestic market, we hotly export machines to Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, Malaysia, Canada, Algeria, Uzbekistan and many other countries, create good sales performance and well feedback, all to strengthen our position in this field. With full enthusiasm, serious attitude and win-win business conception, welcome you to become our clients!
We take care of our machine packing and loading.
Injection machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.We should take photos of loading, and send to you for reference.

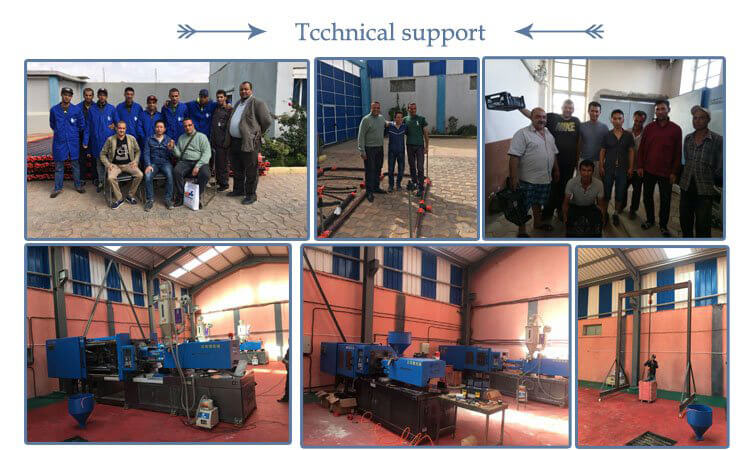

After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quic kly
2. When you finish the Preparation conditions,our fast and professional afters- ales service engineer team will go to your factory to install the machine,give you the op erating manual,and train your employee until they can operate the machine well.
3.We often ask feedback and offer help to our customer whose machine have been use d in their factory fo r some time.
4. We provide one year warranty
5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 . 24 hours for engineer response
7 . 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The deliver time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
