BST-1320A injection molding machine

BST-1320A Injection molding machine
Shot weight is 188-205 g
Max opening stroke : 350 mm
Space between tie-bars : 410 X 375 mm
We have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
Suitable for producing differernt types of precision pet preform ,cap ,PVC,PPR Pipe Joint Electric parts

Style:	Horizetal
Condition:	New
Automatic:	Manual
Payments:	L/C
Quantity:	1

Quantity:

Inquire Add To Basket

Share this:

Model： BST-1320A
Brand： Best Machinery
Code： BST-1320A
Name：BST-1320A injection molding machine
Screw diameter：38 mm
Shot weight：188 g
Injection rate：95 g/s
Toggle stroke：350 mm
Mould thickness：150-420 mm
Space between tie-bars：410*375 mm
Ejector stroke：135 mm
Ejector tonnage：50 KN
Clamp tonnage：1320 KN

Specifications
Technical parameters
Our service
Product Description

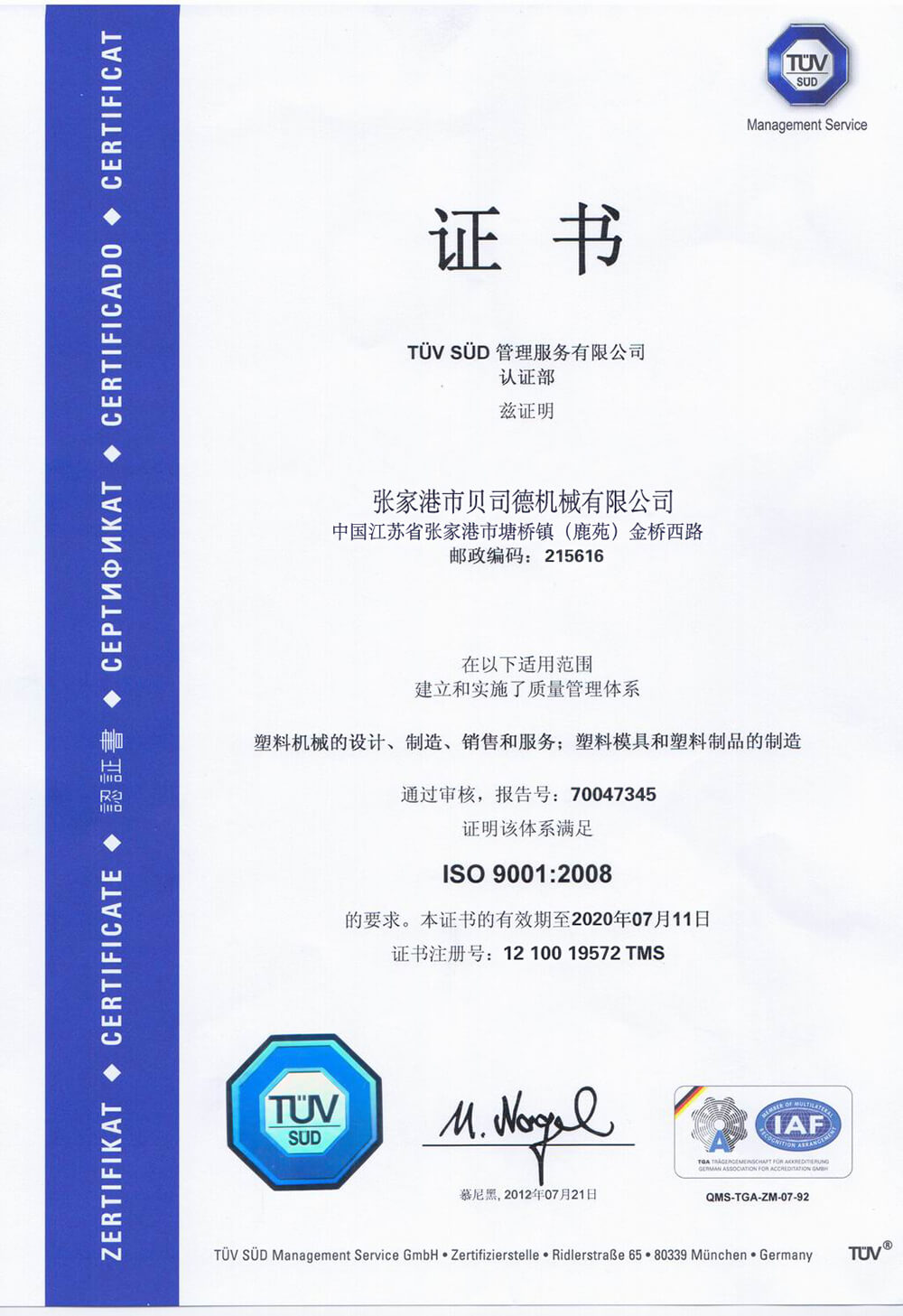

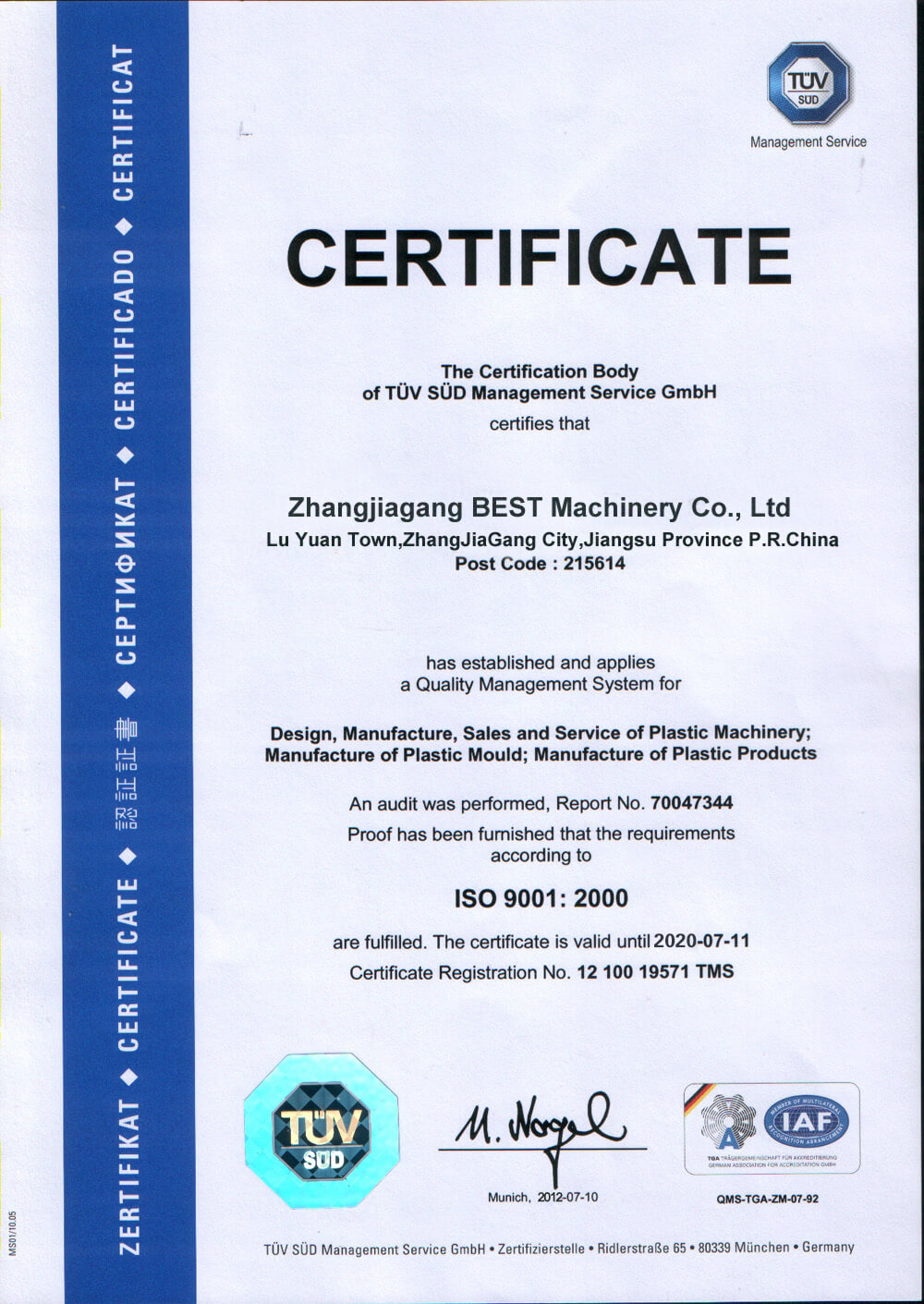

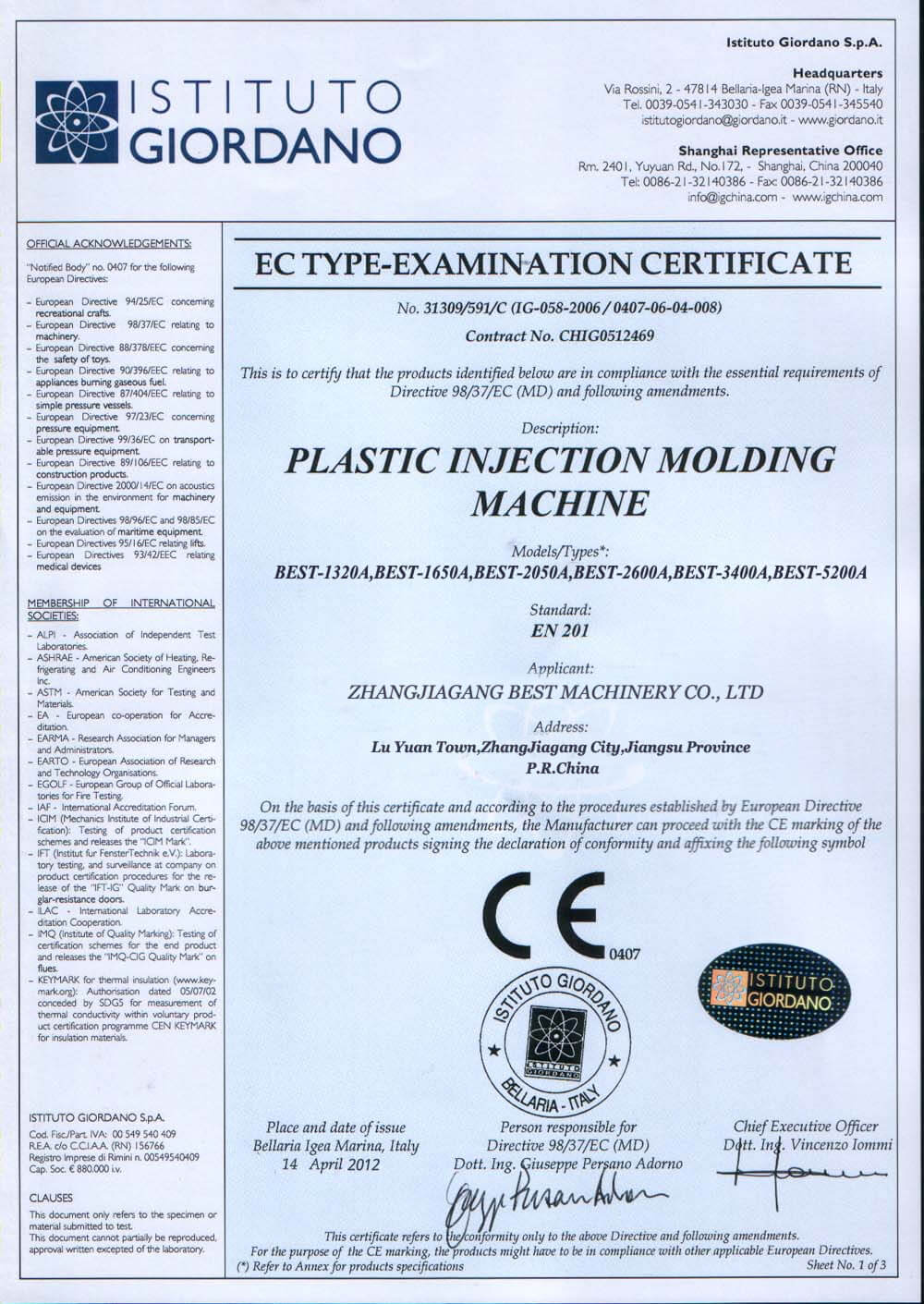

Certification

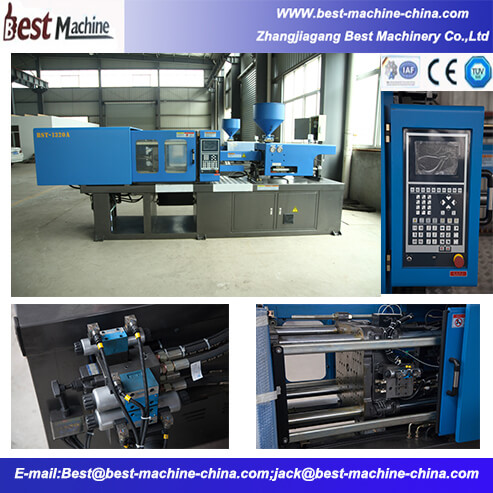

BST-1320A plastic injection molding machine
- Shot Weight is188 g
- Max Opening Stroke:350 mm
- Space Between Tie-bars:410X375 mm
- Imported advanced computer systems, Chinese / English interface
- Can save 50 sets of mold parameter
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design
- Suitable for producing different types of precision small parts
- A variety of text can be switched
- Manual, semi-automatic and fully automatic mode
- Automatic movement monitoring with alarm and fault diagnosis
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

MODEL	BST-1320A
INJECTION UNIT		A	B
Screw diameter	mm	38	40
Shot size(theoretical)	Cm³	210	228
Shot weight	g	188	205
Injection pressure	Mpa	176	160
Injection rate	g/s	95	100
Screw L/D ratio	L/D	22.8	21.7
Screw speed	r.p.m	0-190
Nozzle Diameter	Srmm	10
CLAMPING
Clamp tonnage	KN	1320
Toggle stroke	mm	350
Mould Thickness	mm	150-420
Space between tie-bars	mm	410X375
Ejector stroke	mm	135
Ejector tonnage	KN	50
Ejector number	Piece	5
Hole Diameter	mm	100
OTHERS
Heat power	KW	8.2
Max. pump pressure	MPa	16
Pump motor power	KW	13
Valve Size	mm	10
Machine dimension	m	4.5X1.6X1.7
Machine weight	t	3.9
Oil tank capacity	L	200

Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)
Service:We provide free advanced training and maintance in china factory,and 24 hours on-line or phone service
if you requst we also can provdie installation and training abroad,until customer's satisfication
Delivery time:35days after advance payment
Payment:In cash,T/T transfer,LC etc
Goals:Chase customers requirment,and improve ourselves better

FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
