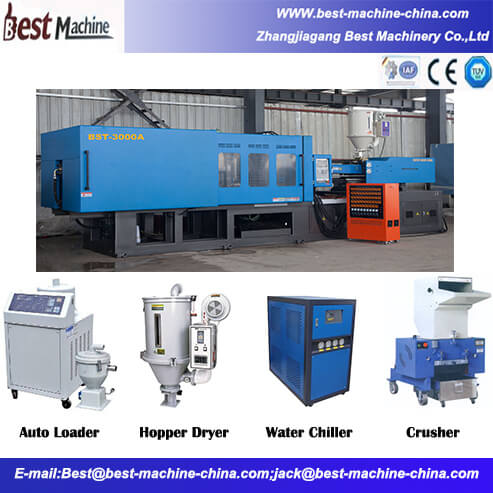

BST-3000A plastic injection molding machine

BST-3000A plastic injection molding machine

BST-3000A shot weight 709-760g，MAX opening stork:560MM，Space between tie bars:580X580MM，
we have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

machine size(LxWxH):

6.5x1.8x1.8m

Quantity:

Inquire Add To Basket

Share this:

Model：BST-3000A
origin：Zhang Jia Gang city

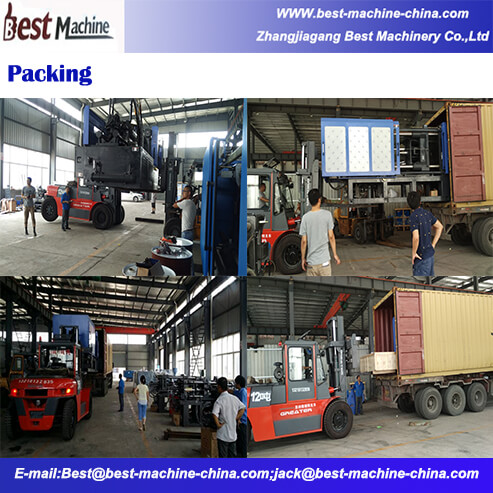

packaging：the tray

Product Description
Product Description1
Product Description2

BST-3000A injection molding machine
The computer is imported from Industry family,The LCD displaying screen with high clarity has Chinese and English language to display
CLAMPING UNIT;
New type 5-point toggle device with the advantage of stable movement curve and gentle shock
Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
Transducer control clamping stroke
INJECTION UNIT
Nitrided screw and barrel with long service life
Smelted screw with big L/D ratio to the result of high quality plasticizing and color-fixing

MODEL	BST-3000A
INJECTION UNIT		A	B
Screw diameter	mm	56	58
Shot size(theoretical)	Cm³	788	845
Shot weight	g	709	760
Injection pressure	Mpa	178	166
Injection rate	g/s	210	226
Screw L/D ratio	L/D	21.6	21
Screw speed	r.p.m	0-180
Nozzle Diameter	Srmm	20
CLAMPING
Clamp tonnage	KN	3000
Toggle stroke	mm	560
Mould Thickness	mm	220-600
Space between tie-bars	mm	580x580
Ejector stroke	mm	160
Ejector tonnage	KN	80
Ejector number	Piece	9
Hole Diameter	mm	160
OTHERS
Heat power	KW	15.5
Max. pump pressure	MPa	16
Pump motor power	KW	25
Valve Size	mm	16
Machine dimension	m	6.5X1.8X1.8
Machine weight	t	9
Oil tank capacity	L	370

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:35-40days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better

Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 3,000 million fixed assets...
