BST-3400A plastic injection molding machine

BST-3400A plastic injection molding machine

BST-3400A shot weight:772-826g，max opening stroke:580MM，space between tie bars:640X640MM
we have Imported advanced computer systems, Chinese / English interface.
You can save 50 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

machine size(LxWxH):

6.7x2.0x1.9m

Quantity:

Inquire Add To Basket

Share this:

Model：BST-3400A
origin：Zhang Jia Gang city

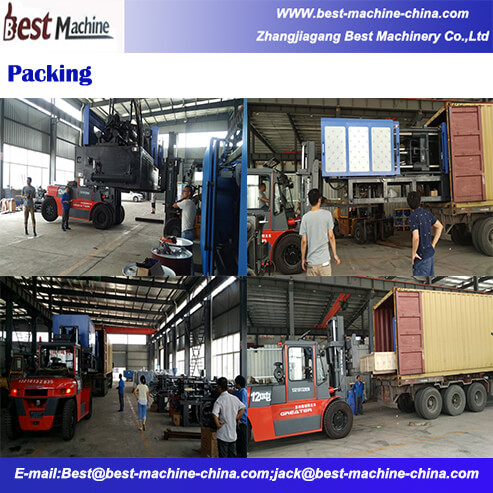

packaging：the tray

Product Description
Product Description1
Product Description2

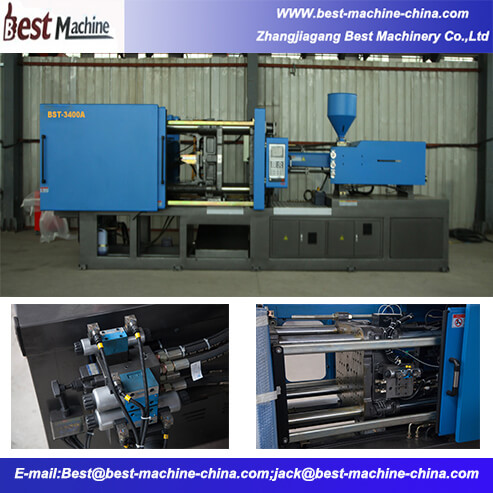

BST-3400A injection molding machine
The computer is imported from Industry family,The LCD displaying screen with high clarity has Chinese and English language to display
CLAMPING UNIT;
New type 5-point toggle device with the advantage of stable movement curve and gentle shock
Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
Transducer control clamping stroke
INJECTION UNIT
Nitrided screw and barrel with long service life
Smelted screw with big L/D ratio to the result of high quality plasticizing and color-fixing
Transducer control injection stroke

MODEL	BST-3400A
INJECTION UNIT		A	B
Screw diameter	mm	58	60
Shot size(theoretical)	Cm³	858	918
Shot weight	g	772	826
Injection pressure	Mpa	180	168
Injection rate	g/s	254	272
Screw L/D ratio	L/D	22.2	21.5
Screw speed	r.p.m	0-180
Nozzle Diameter	Srmm	20
CLAMPING
Clamp tonnage	KN	3400
Toggle stroke	mm	580
Mould Thickness	mm	270-650
Space between tie-bars	mm	640X640
Ejector stroke	mm	160
Ejector tonnage	KN	80
Ejector number	Piece	13
Hole Diameter	mm	160
OTHERS
Heat power	KW	17.5
Max. pump pressure	MPa	16
Pump motor power	KW	30
Valve Size	mm	25
Machine dimension	m	6.7X2.0X1.9
Machine weight	t	10.8
Oil tank capacity	L	400

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:40-45days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better
